High-quality HP / HPA filling station from Manta Tech for paintball and airsoft fields.

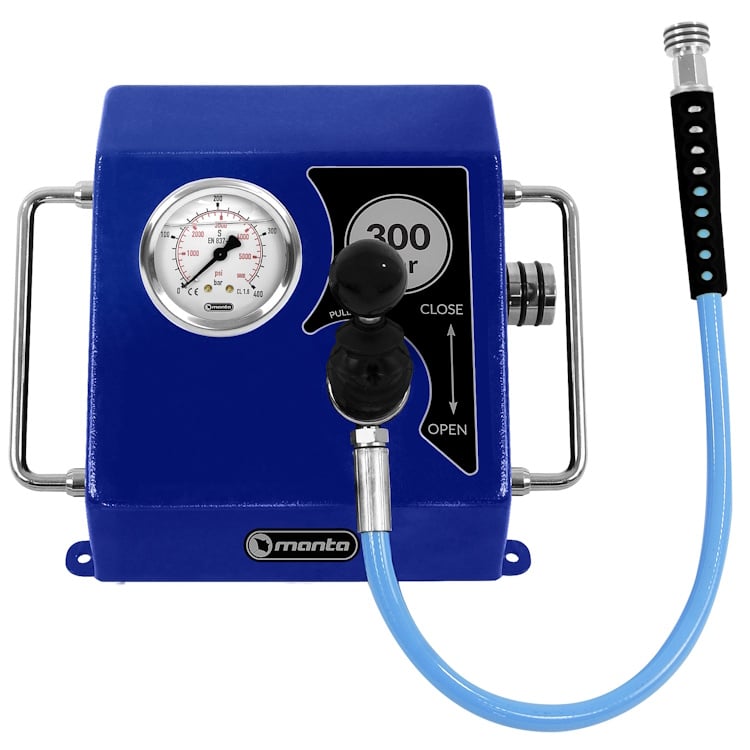

This filling station is the Manta Tech Single Outlet Fill Panel model with a tap and a filling hose. The Manta Tech paintball filling stations are also available in other versions with two taps for larger playing fields or even up to five taps for big games and other large events.
All Manta Tech products are 100% made in the EU. This quality product comes from our neighboring country Poland. With its range, the manufacturer has specially adapted to the requirements of paintball and airsoft sports and has created a product that is convincing across the board. The Manta Tech filling stations work reliably, trouble-free and low-maintenance. This ensures high customer satisfaction among field operators. At the same time, they offer very good comfort and a secure feeling for the user / player on the field. The filling nozzles and levers are ergonomically shaped and feel solid and of high quality. This instills confidence in customers and makes them feel more comfortable when they visit the facility.
For us, the Manta filling stations are currently one of the number one systems in the paintball industry!
The Manta Tech filling station has all the usual features and conveniences that you would expect from a modern paintball filling station. The levers and filler necks are solidly manufactured and have a great feel. The filling process is gentle and throttled. - No uncontrolled filling with maximum pressure, as with other inexpensive filling devices on the market!
For filling, the HP system is simply connected to the filling nozzle of the Manta Tech filling station with the filling nozzle of the regulator. Then you press down the filling lever on the fitting and the filling process begins. When the bottle is full, you release the lever and the hose deflates automatically. Now you can separate the filled system from the filling hose without pressure and it is ready to play.
The Manta Tech filling stations always deliver the output pressure as standard, which is also fed into the system as input pressure from the compressor / storage bottle. In other words, if 300 bar flows from the compressor into the filling station, then 300 bar filling pressure also comes out of the station. However, the filling stations can optionally be retrofitted with an infinitely adjustable pressure reducer. This is available as an accessory. The filling station can then be optionally and steplessly adjusted to an outlet pressure of between 200 bar and 300 bar. The setting is made using a pressure adjustment screw. This means that you are always flexible when using the filling station and can reset the outlet pressure within a few seconds if necessary. It doesn't matter whether you use them in the rental business or for tournament players. One system is sufficient to cover all areas. The pressure reducer is not built into the filling station as standard and must be ordered separately.
The large range of accessories and spare parts from Manta Tech is particularly interesting. If desired, several filling stations can be connected in series and combined with each other. This means that every field operator can set up his own network of filling stations with just one compressor and distribute the filling stations individually on his system. In addition, there are numerous angle pieces, distributors and valves in the Manta Tech range to create a truly individual system.
If you are interested in equipping your field with Manta Tech filling stations, please feel free to contact us. We would be happy to advise you and work with you to put together a perfectly tailored setup for your playing field.
Manta Tech Single Outlet Fill Panel Filling Station Product Details:
- Working pressure 200 bar / 300 bar (adjustable)
- 1 filling hose (approx. 50cm long)
- TÜV Rheinland certified system
- 100% Made in Europe (Poland)
- High quality
- Gentle filling process and automatic venting
- Ergonomic handles and ball valves
- Individually combinable and expandable system
- Maximum working pressure 350 bar
- Weight approx. 3.5 kg
- Connection via standard 5/8" 300 bar connection
- Dimensions approx. 25x17x15cm
